Li0.8Fe0.2OHFeSe is a new type of iron-selenide superconductor where the FeSe layers are separated by (Li0.8Fe0.2)OH blocking layers. Due to intercalated hydrogen atoms, it was not feasible to conduct an inelastic neutron scattering experiment in the beginning, but the research group at Fudan University successfully grew the phase-pure single crystal and fully deuterated their single-crystalline sample by a hydrothermal ion exchange method.

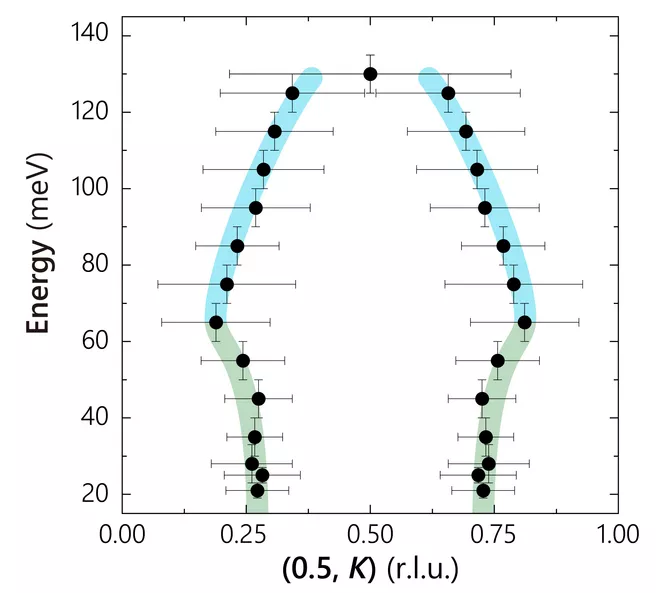

From the inelastic neutron scattering measurement on PUMA, first of all, it is found that the magnetic resonant mode is located at the weird wave vector which connects two electron Fermi pockets, indicating that the Cooper pairing symmetry still remains as sign-reversed type as other iron-based superconductors. Dr. Jitae Park, instrument responsible at PUMA says: "More surprise comes from the high energy regime: the spin excitation slowly disperses outward in the low-energy region, and above 60 meV the dispersion suddenly turns into an inward shape, forming the twisted dispersion. Such behavior was not seen in any other Fe-based superconductors by far." Instead, it rather resembles to the well-known “hour-glass” dispersion in copper-oxide based high Tc superconductors, in which the highest superconducting transition temperature was recorded among unconventional superconductors. This experimental observation implies that the higher superconducting transition temperature may favor not only the sign-changing pairing channels, but also the twisted spin excitations.
Original publication:
Structure of spin excitations in heavily electron-doped Li0.8Fe0.2ODFeSe superconductors
B. Pan, Y. Shen, D. Hu, Y. Feng, J.T. Park, A.D. Christianson, Q. Wang, Y. Hao, H. Wo, Z. Yin, T.A. Maier and J. Zhao
Nature Communications 8 (1), 123 (2017)
